    GLC-BX-D 10G Optical Transceiver Digital Diagnostic Monitoring Internal / External Calibration

    Ask Lasest Price
    Brand Name : Cisco GLC-BX-D 10G
    Model Number : GLC-BX-D
    Certification : CE GLC-BX-D 10G
    Price : negonation
    Payment Terms : Western Union, L/C, T/T, Paypal
    Supply Ability : 1000
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    GLC-BX-D 10G Optical Transceiver Digital Diagnostic Monitoring Internal / External Calibration


    GLC-BX-D 10G Optical Transceiver Digital Diagnostic Monitoring Internal / External Calibration


    Cisco GLC-BX-D


    Cisco GLC-BX-D Specifications


    Item Specification:


    Data-rate of 1.25Gbps operation
    1310nm FP laser and PIN photodetector for 10Km transmission
    Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    Digital Diagnostic Monitoring:
    Internal Calibration or External Calibration
    Compatible with RoHS
    +3.3V single power supply
    Operating case temperature:
    Standard : 0 to +70°C


    Applications:


    PRODUCT DETAILS
    Device TypeSFP (mini-GBIC) transceiver module - LC single mode
    Form FactorPlug-in module
    Cabling Type1000Base-BX-D
    Data Transfer Rate1.25 Gbps
    Optical Wave Length1490 (TX) / 1310 (RX) nm
    Data Link ProtocolGigabit Ethernet, Fibre Channel
    Max Transfer Distance20 km
    Dimensions (WxDxH)1.37 cm x 5.84 cm x 1.34 cm
    Show Detailed Specification
    GENERAL
    Device TypeSFP (mini-GBIC) transceiver module
    Form FactorPlug-in module
    NETWORKING
    Connectivity TechnologyWired
    Cabling Type1000Base-BX-D
    Data Link ProtocolGigabit Ethernet, Fibre Channel
    Fibre ChannelFC-PH, FC-PH-2, FC-PH-3, FC-PI-2
    Data Transfer Rate1.25 Gbps
    Optical Wave Length1490 (TX) / 1310 (RX) nm
    Max Transfer Distance20 km
    FeaturesDigital Optical Monitoring (DOM) support, Digital Diagnostics
    Compliant StandardsIEEE 802.3, IEEE 802.3z
    DIMENSIONS & WEIGHT
    Width1.37 cm
    Depth5.84 cm
    Height1.34 cm
    ENVIRONMENTAL PARAMETERS
    Min Operating Temperature0 °C
    Max Operating Temperature70 °C
    MISCELLANEOUS
    Compliant StandardsRoHS, Laser Class 1, EN 60825-1, MSA
    EXPANSION / CONNECTIVITY
    Interfaces1 x Ethernet 1000Base-BX-D - LC single mode
    Compatible Slots1 x SFP (mini-GBIC)

    Ordering infomation:


    PNDESCRIBTION
    WS-G54841000BASE-SX Short Wavelength GBIC (Multimode only)
    WS-G54841000BASE-SX Short Wavelength GBIC (Multimode only)
    WS-G54861000BASE-LX/LH long haul GBIC (singlemode or multimode)
    WS-G54871000Base-ZX extended reach GBIC(singlemode)
    X2-10GB-LR10GBASE-LR X2 Module
    X2-10GB-SR10GBASE-SR X2 Module

    Competitive advantage:

    1. Excellent quality and 1 years warranty
    2. Competitive pricing
    3. Original Package
    4. Original Label
    5. Keep stock,Fast delivery


    One year warranty:
    All of our Cisco products with one year manufacture warranty or smartnet free for you buying smartnet at you local Cisco.


    Shanghai Office:


    Tel: +8618616582084
    Fax: +86-021-56473510
    Email: laura@lonriseequipment.com
    Skype: lonrisesales
    Address: Rm501, Building 42th , No. 415, ShanQuan Road, 200443 ZhaBei District, Shanghai, China.

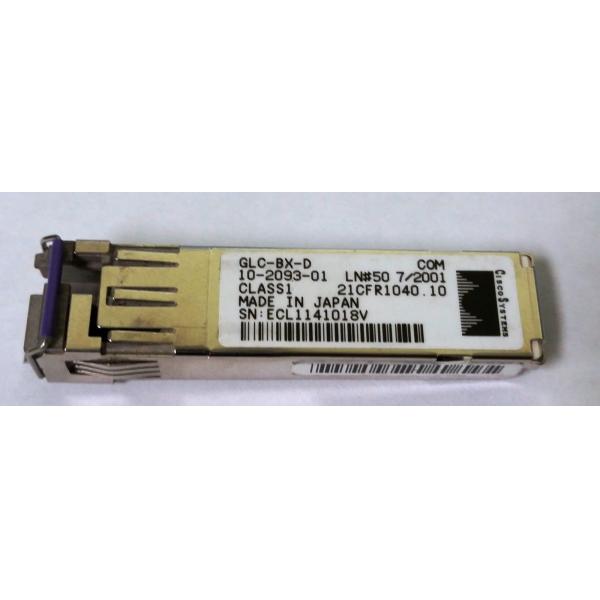

    Pictures for reference:



    Quality GLC-BX-D 10G Optical Transceiver Digital Diagnostic Monitoring Internal / External Calibration for sale
