Product Overview

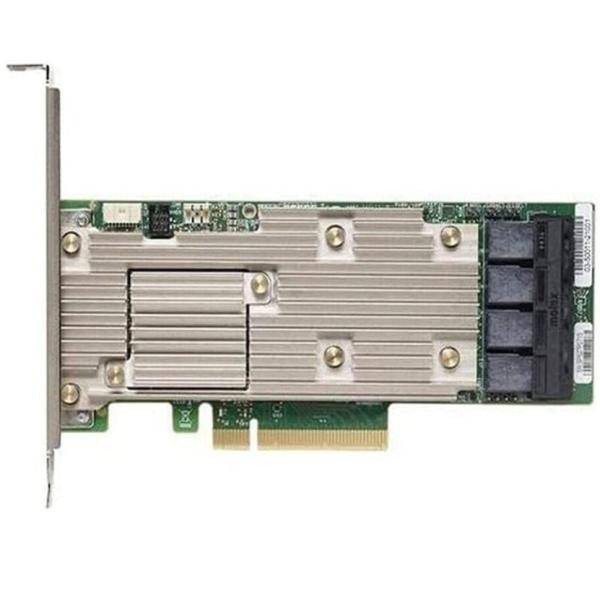

BROADCOM 9460-16i 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller.

Overview Todays Data Center, Cloud And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity, They Also Must Provide The Data Protection And Performance That Their Applications And End Users Demand. The Megaraid 9460-16i Tri-mode Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Proven Flexibility, Performance And Raid Data Protection For A Range Of Server Storage APPLICATIONS.

BROADCOMS Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.

• Connect Up To 255 Sas/sata Devices Or 24* Nvme Devices Per Controller

• Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors.

• Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity.

• Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60

• Add More Protection And Peace Of Mind With Cachevault® Flash Cache Protection.

  Specifications

  Physical Dimensions Low Profile 6.127” X 2.712”

  Cache Protection Cachevault Cvpm05

  Host Bus Type X16 Lane Pci Express® 3.1

  Cache Memory 2gb 2133 Mhz Ddr4 Sdram

  Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)

  Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.

  Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*

  Internal Connectors 2 Mini-sas Hd X4 Sff-8643

  Operating Temperature 10° To 55° C

  Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
