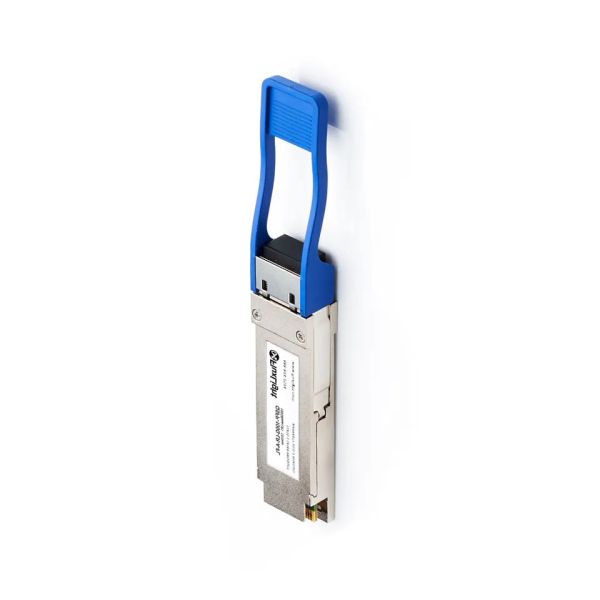

    TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network

    Ask Lasest Price
    Brand Name : Cisco
    Model Number : TR-ZC13L-N00
    Certification : CE
    MOQ : 1pcs
    • Product Details
    • Company Profile

    TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network

    TR-ZC13L-N00 Optical Transceiver Module wireless network module slave enhanced network

    (Optical Transceiver Module gigabit ethernet transceiver 1000base t sfp transceiver module )

    General Description

    This product is a transceiver module designed for 10km optical communication applications.The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LCconnector. The module has a maximum power consumption of 4.5W.

    MSA Compliant Connector

    P/NProduct DescriptionData Rate(Gbit/s)TXRXTX_Min (dBm)TX_Max (dBm)RX_Min (dBm)RX_Max (dBm)Power ConsumptionReachTemperature
    (deg C)
    TR-FC85S-N00QSFP28 SR4100G850nm VCSELPIN-8.42.4-10.32.42.5100m0-70
    TR-FC13R-N00QSFP28 LR4 Ethernet100G1296-1309nm LWDM DFBPIN-4.34.5-10.64.5410km0~70
    TR-FC13T-N00QSFP28 CWDM4100GDFB CWDMPIN-6.52.5-11.52.53.510km0~70
    TR-FC13D-N00QSFP28 ER4 Lite100G1296-1309nm LWDM EMLAPD-2.56.5-16.65 / -20.5-3.54.530km / 40km (w/ FEC)0~70
    TR-FC13D-NSNQSFP28 ER4 Lite Dual Rates100G / 112G1296-1309nm LWDM EMLAPD-0.76.5-14.85 / -18.7-3.54.530km / 40km (w/ FEC)0~70
    TP-VC13Txxxx-N00QSFP28 PSM4 Pigtail100G1310nm DFBPIN-5.52-10.523.52km0~70
    TF-FCxxx-N00QSFP28 AOC100G850nm VCSELPINN/AN/AN/AN/AN/A10km0~70
    TR-VC13T-N00QSFP28 PSM4100G1310nm DFBPIN-5.52-10.223.52km0~70

    TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network

    Product Specification

    TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network

    Figure 1. Transceiver Block Diagram

    TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network


    N9K-C9332CC9300-24T-AC9200L-24T-4X-ES6720S-26Q-EI-24S-ACSCBE2-MXJL685A
    N9K-C93180YC-FXC9300-48P-AC9200L-24T-4G-ES5720-52X-PWR-SI-ACRE-S-X6-64GJL428A
    N9K-C93108TC-FX3PC9300-48P-EC9200L-48P-4G-EPAC1000S56-DBRE-S-1800X4-32GJL681A
    C9500-48Y4C-AC9300-48T-AC9200L-48P-4X-EPAC600S12-EBQFX5110-48S-AFOJL725A
    C9500-24Y4C-EC9300-48T-ES6730-H24X6CEX4600-40F-AFOEX3400-48T-AFIR8N87A
    C9500-24Y4C-AC9300-NM-8X=S5735-S24P4XEX2300-48PEX4300-48P-DCJ4859D
    C9500-40X-AC9200L-24P-4G-ES6735-S48X6CEX2300-24PMPC7E-10GJ4858D
    C9300-24S-AC9200L-48T-4G-ES5735-L48T4X-AEX4300-32FMPC7E-MRATESP-FG300E-PS
    C9300-24P-AC9200L-48T-4X-AS5735-L32ST4X-A1EX4300-48TMX104双电双引擎FG-60F
    C9300-24P-EC9200L-24P-4X-ES5735-S48S4XMX204-IRJL253AFC-10-0060F-950-02-12
    FG-100FFC-10-F100F-950-02-12FG-200FFC-10-F200F-950-02-12C9500-24Y4C-APAC1000S56-DB
