CE6820 - 48S6CQ - B - Huawei CloudEngine 6800 Data Center Switches

Ask Lasest Price
Brand Name :	Huawei
Model Number :	CE6820-48S6CQ
Certification :	CE

Add to Cart

Product Details
Company Profile

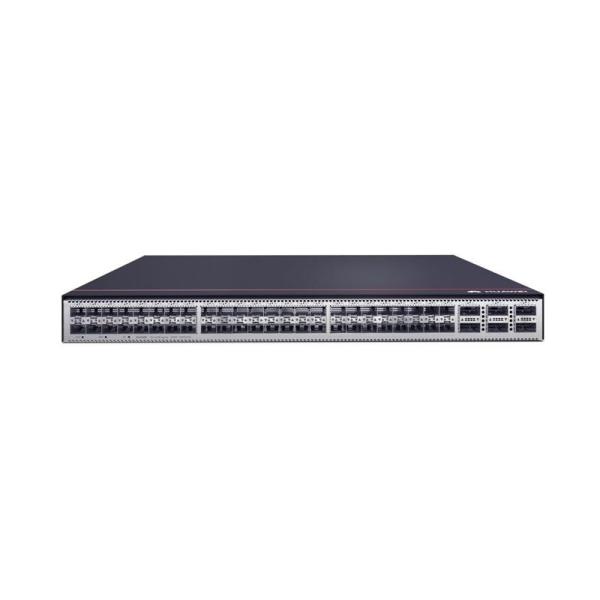

CE6820 - 48S6CQ - B - Huawei CloudEngine 6800 Data Center Switches

CE6820 - 48S6CQ - B - Huawei CloudEngine 6800 Data Center Switches
Huawei CloudEngine 6850 (CE6850 for short) series switches are
next-generation 10G Ethernet switches designed for data centers and
high-end campus networks, providing high-performance, high-density
10GE ports, and low latency. The CE6850 series uses an advanced
hardware architecture with 40GE uplink ports and high density 10GE
access ports. Using the Huawei VRP8 software platform, CE6850
series provide extensive data center service features and high
stacking capability. In addition, the airflow direction
(front-to-back or back-to-front) can be changed. CE6850 series can
work with CE12800 switches to build an elastic, virtualized,
high-quality fabric that meets the requirements of cloud-computing
data centers.
CE6820-48S6CQ-B Specification
ItemDescription
Processor1.4 GHz, four-core
DRAM Memory4 GB
NOR Flash64 MB
NAND Flash4 GB
Mean time between failures (MTBF)45.48 years
Mean time to repair (MTTR)1.52 hours
Fixed portsForty-eight 10GE SFP+ Ethernet optical ports Six 40GE/100GE QSFP28
Ethernet optical ports
Physical specificationsDimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm
TemperatureOperating temperature: 0°C to 40°C (32°F to 104°F) at altitude of
0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity5% RH to 95% RH, noncondensing
Altitude< 5000 m (16404 ft.)
Noise (sound pressure, 27°C)Back-to-front airflow: < 55 dBA; Front-to-back airflow: < 55
dBA
Power source typeAC/DC/HVDC
AC power inputRated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power inputRated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V D
High-voltage DC power inputRated voltage range: -48 V DC to -60 V DC
Maximum voltage range: 190 V DC to -290 V D
Rated input current600 W AC&240 V DC power (PAC600S12 series): 8 A (100 V AC to
240 V AC); 4 A (240V DC)
1000 W DC power (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
Maximum power consumption282 W
Typical power consumption162 W (100% throughput, SFP+ high-speed cables on 48 ports and
QSFP28 high-speed
cables on 6 ports, double power modules)
196 W (100% throughput, all optical interfaces on the switch are
equipped with
the short-distance optical modules, double power modules)
Maximum heat dissipation962 BTU/Hr
Heat dissipation modeAir cooling
AirflowFront-to-back or back-to-front, depending on the fan modules and
power modules
Power module backup1+1 backup
Fan module backup3+1 backup
Hot swapSupported by all power modules and fan modules
Availability0.99999618
Service port supporting the stack function10GE optical ports, and 100GE optical ports
CiscoHuaweiSiemens
C1000-24P-4G-LS5735-L24P4X-A16AV6643-0DD01-1AX1
C1000-48P-4G-LS5735-L48P4X-A16AV6643-0AA01-1AX0
C9200L-24T-4G-ES5731-S48P4X6AV6643-0DB01-1AX1
C9300-24P-ES5731-S32ST4X6AV6643-0CB01-1AX1
C9300-48P-ES6730-H48X6C6AV6643-0CD01-1AX1
WS-C2960X-24PS-LS6730-H24X6C6AV6643-0BA01-1AX1
C9500-24Y4C-AS5735-S48T4X6ES7 216-2BD23-0XB8
N9K-C93180YC-FXS5735-S24T4X6ES7 216-2AD23-0XB8
ISR4331/K9USG6630E6ES7 901-3DB30-0XA0
ISR4451-X/K9USG6650-AC6GK7 243-1EX01-0XE0
C1111-8PAirEngine 5760-106GK7 243-1GX00-0XE0
AIR-AP3802I-E-K9AirEngine 5760-516ES7 901-3DB30-0XA0
C9130AXI-EAP7060DN6ES7 211-0BA23-0XB0
C9800-L-F-K9eSFP-GE-SX-MM8506ES7 212-1AB23-0XB8
ASA5506-K9S-SFP-GE-LH40-SM13106ES7 212-1BB23-0XB8
FPR1120-NGFW-K9OMXD300006ES7901-3DB30-0XA0
FPR1140-NGFW-K9OSX0100006ES7 211-0AA23-0XB0
C9300-NM-8XQSFP-40G-eSR46ES7 214-1AD23-0XB8
C9500-NM-8XSFP-1000BaseT6ES7 214-1BD23-0XB8
PWR-C5-125WACAruba APS6ES7 214-2AD23-0XB8
PWR-C5-600WACAP5056ES7 214-2AS23-0XB8
PWR-C1-350WAC-PAP5156ES7 214-2BD23-0XB8
PWR-C1-715WAC-PRuckus APS6ES7972-0BA52-0XA0
PWR-C6-1KWACR6106ES7 223-1BF22-0XA8
GLC-SX-MMDR7206ES7 223-1HF22-0XA8
GLC-LH-SMDS6730-H48X6C6ES7 223-1BH22-0XA8
GLC-TES6730-H24X6C6ES7 223-1PH22-0XA8
SFP-10G-SRAR651C6ES7 223-1BL22-0XA8
SFP-10G-LRAR500C-2C6GE6ES7 223-1PL22-0XA8
SFP-25G-SR-SPAC-600WA-B6ES7 223-1BM22-0XA8
