    N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec

    Ask Lasest Price
    Brand Name : Cisco
    Model Number : N9K-C93108TC-FX
    Certification : CE
    Payment Terms : T/T,Western Union
    Delivery Time : 1-3 Days
    • Product Details
    • Company Profile

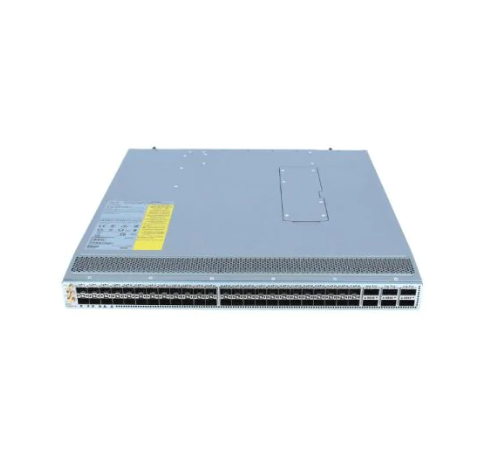

    N9K-C93108TC-FX Nexus 9300 With 48p 10G BASE-T And 6p 40G/100G QSFP28 MACsec

    N9K-C93108TC-FX Overview


    The Cisco Nexus 93108TC-FX Switch is a 1RU switch that supports 2.16 Tbps of bandwidth and over 1.25bpps. The 48 10GBASE-T downlink ports on the 93108TC-FX can be configured to work as 100-Mbps, 1-Gbps, or 10-Gbps ports. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40, 50-, and 100-Gbps connectivity, offering flexible migration options.

    Quick Spec

    Table 1 shows the quick specs of N9K-C93108TC-FX.

    ModelN9K-C93108TC-FX
    Physical dimensions
    (H x W x D)
    1.72 x 17.3 x 22.5 in.
    (4.4 x 43.9 x 57.1 cm)
    MTBF319,790 hours
    CPU4 cores
    System memory
    24 GB
    Ports
    • Downlink Ports: 48 x 10 Gigabit Ethernet (10GBASE-T) ports, which can also support 100Mbps, 1Gbps, and 10Gbps speeds.

    • Uplink Ports: 6 x 40/100 Gigabit QSFP28 ports.

    Performance

    • Switching Capacity: 2.16 Tbps.
    • Forwarding Rate: 1.44 Bpps (Billion packets per second).
    • MAC Address Table Size: 512,000 entries.
    • Buffer Memory: 40 MB shared buffer.
    • Latency: Under 1 microsecond (port-to-port).
    Key Features

    • Form Factor: 1U rack-mountable.
    • Architecture: Cisco Nexus 9000 platform built on modern system architecture.
    • Security: MACsec encryption on all ports.
    • Scalability: Designed for highly scalable data centers and supporting a large number of endpoints.
    • Flexibility: Offers flexible port-speed configurations for migration.
    • Management: Supports Cisco NX-OS software, CLI, and DCNM.
    Physical and Environmental
    • Dimensions: 1.72 x 17.3 x 22.5 inches (4.4 x 43.9 x 57.2 cm).

    • Power: Dual redundant, hot-swappable power supplies.

    • Airflow: Supports port-side intake and exhaust, and front-to-back airflow.
